Hybrydowy falownik

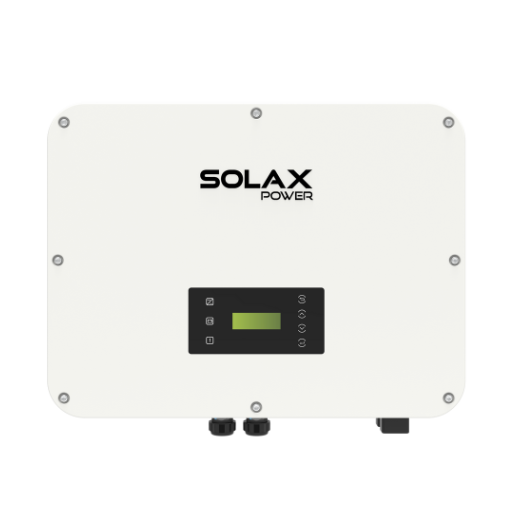

X3-ULTRA

  • 15 kW / 19,9 kW / 20 kW / 25 kW / 30 kW

Model X3-ULTRA oferuje niezrównaną elastyczność, obsługując równolegle do 10 jednostek zarówno w systemach sieciowych, jak i poza siecią.  Dzięki 36A wejściu PV na MPPT obsługuje panele słoneczne o dużej mocy. Zaawansowane funkcje mikrosieci i generatora jeszcze bardziej zwiększają jego możliwości adaptacyjne, dzięki czemu jest doskonałym rozwiązaniem zarówno dla instalacji mieszkalnych, komercyjnych, i przemysłowych.

Zaleta produktu

Falownik X3-ULTRA obsługuje 200% PV przewymiarowanie dla 100% wyjścia AC i przechowywania akumulatora. Dzięki 2/3 MPPT zapewnia tolerancję na błędy i maksymalizuje wytwarzanie energii. Funkcja mikrosieci umożliwia pracę poza siecią, wykorzystując energię PV lub akumulatora do zasilania falowników szeregowych podczas przerw w dostawie prądu, zmniejszając zależność od sieci.

Skontaktuj się z nami

Assured Reliability

  • IP66 protection degree

  • Type II SPD on AC&DC side

  • Optional AFCI protection


Flexible Adaptability

  • Max. 10pcs parallel for on-grid and off-grid

  • Microgrid and generator function for versatile operations

  • Max. 36A PV input per MPPT, optimized for high-power solar panel

High Performance

  • 200% PV oversizing and up to 110% AC output

  • 200% EPS overload for 10s

  • Max. 60A charging / discharging current

  • Low start-up voltage for longer operation

Smart Management

  • Single unit UPS-level switchover time<10ms

  • Built-in shadow tracking

  • Smart loads management(e.g., heat pump, smart EV charger)

  • Loads respond time within 0.3 s

  • VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)*

Parametry produktu

  • X3-ULT-15K
  • X3-ULT-15KP
  • X3-ULT-19.9K
  • X3-ULT-20K
  • X3-ULT-20KP
  • X3-ULT-25K
  • X3-ULT-30K
  • X3-ULT-15K
    • PV INPUT
      Max. recommended PV array power30 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT2 / (2 / 2)
      Max. input current per MPPT36 A / 36 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power15000 W(AS4777 14999 W)
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg


  • X3-ULT-15KP
    • PV INPUT
      Max. recommended PV array power30 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT3 / (2 / 2 / 2)
      Max. input current per MPPT36 A / 36 A  / 36 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power15000 W(AS4777 14999 W)
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg


  • X3-ULT-19.9K
    • PV INPUT
      Max. recommended PV array power40 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT2 / (2 / 2)
      Max. input current per MPPT36 A / 36 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power20000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg


  • X3-ULT-20K
    • PV INPUT
      Max. recommended PV array power40 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT2 / (2 / 2)
      Max. input current per MPPT36 A / 36 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power20000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg


  • X3-ULT-20KP
    • PV INPUT
      Max. recommended PV array power40 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT3/ (2 / 2 / 2)
      Max. input current per MPPT36 A / 36 A / 36 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power20000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg


  • X3-ULT-25K
    • PV INPUT
      Max. recommended PV array power50 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT3 / (2 / 2 / 2)
      Max. input current per MPPT36 A / 36 A / 36 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power25000 W(VDE4105 24900 W)
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg


  • X3-ULT-30K
    • PV INPUT
      Max. recommended PV array power60 kWp
      MPPT voltage range160~950 V
      No. of MPP. trackers / strings per MPPT3 / (2 / 2 / 2)
      Max. input current per MPPT36 A / 36 A / 36 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power30000 W (AS4777 29999 W,VDE4105 29900 W)
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V





    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)696x526x240 mm
      Net Weight47 kg
