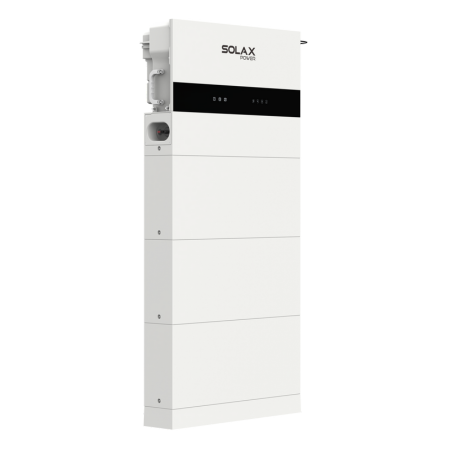

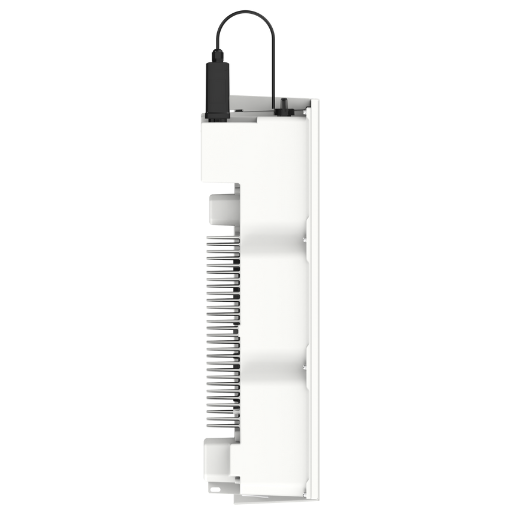

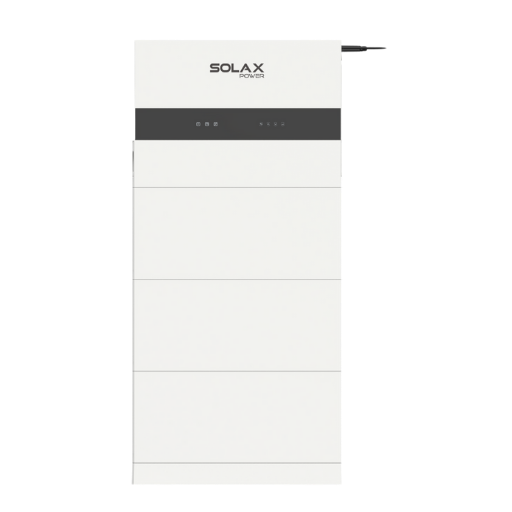

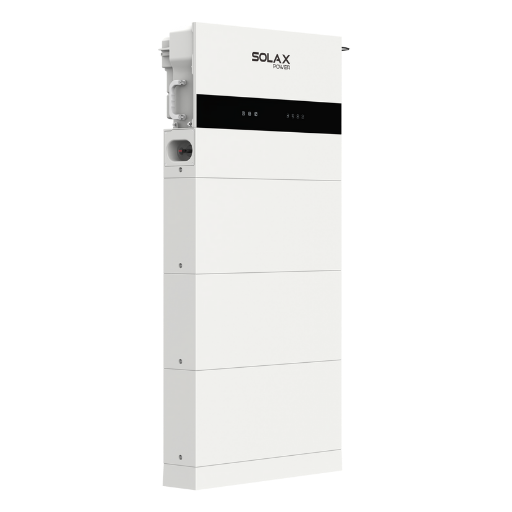

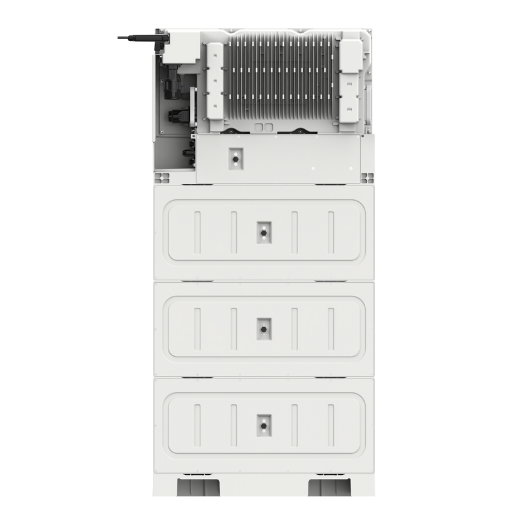

System magazynowania energii

X3-IES-P

4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

Falownik X3-IES-P został zaprojektowany z myślą o elastyczności i prostocie, wyposażony w kompaktową, kompleksową konstrukcję typu plug-and-play, która upraszcza instalację. Bez wysiłku dostosowuje się do różnych zastosowań dzięki obsłudze pomp ciepła, ładowarek aut elektrycznych EV i inteligentnych scen.

Obejrzyj wideo
Pobieranie danych

Zaleta produktu

X3-IES-P oferuje 200% energii PV i dostarcza do 20 A na MPPT, maksymalizując zbiory słoneczne w każdych warunkach. Niskie napięcie startowe i globalna technologia śledzenia MPP optymalizują wychwytywanie energii przez cały dzień.

Skontaktuj się z nami

Assured Reliability

IP66 protection degree
Type II SPD on AC&DC side
AFCI protection (optional)**
Unique battery heating tech and wide temperature tolerance
Up to 200% EPS output for 10s
UPS-level switchover time<10ms

Smart Management

Al ready, forecasting solar generation and home consumption for smart energy management strategy control*
VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)**
Micro-grid support for real-time balance in grid/off-grid
Wireless meter solution
Smart Schedule, Smart Scene, and 7*24h TOU
Global MPP scan for optimal energy harvest

High Performance

Max. 3 MPPTs for versatile application scenarios
200% oversizing and 200% PV input power
Max. 20A PV input per MPPT
Low startup voltage for higher energy harvest

Flexible Adaptability

All-in-one, plug-and-play design
Support smart scene functions (e.g., heat pump, EV charger)
Versatile installation for varied needs

Parametry produktu

X3-IES-4K-P
X3-IES-5K-P
X3-IES-6K-P
X3-IES-8K-P
X3-IES-10K-P
X3-IES-12K-P
X3-IES-15K-P

X3-IES-4K-P
- PV INPUT

  Max. recommended PV array power
  8 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  4kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  4 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-5K-P
- PV INPUT

  Max. recommended PV array power
  10 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  5kW (AS4777 4999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  5 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-6K-P
- PV INPUT

  Max. recommended PV array power
  12 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2 / (1 / 1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  6kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  6 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-8K-P
- PV INPUT

  Max. recommended PV array power
  16 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  10 kW (AS4777 9999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  10 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-10K-P
- PV INPUT

  Max. recommended PV array power
  20 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  10 kW (AS4777 9999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  10 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-12K-P
- PV INPUT

  Max. recommended PV array power
  24 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  12 kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  12 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-15K-P
- PV INPUT

  Max. recommended PV array power
  30 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  15 kW (AS14999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  15 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
