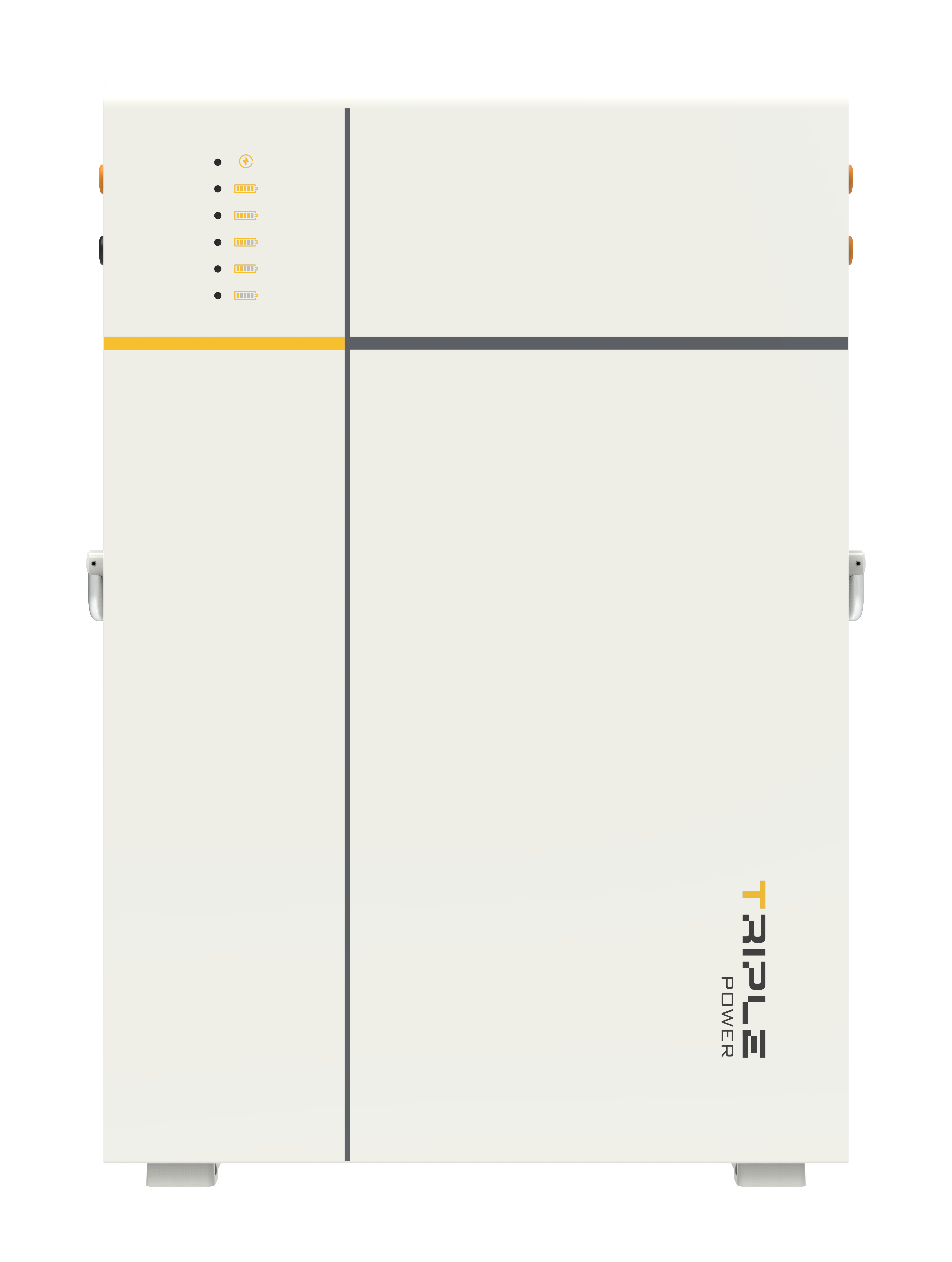

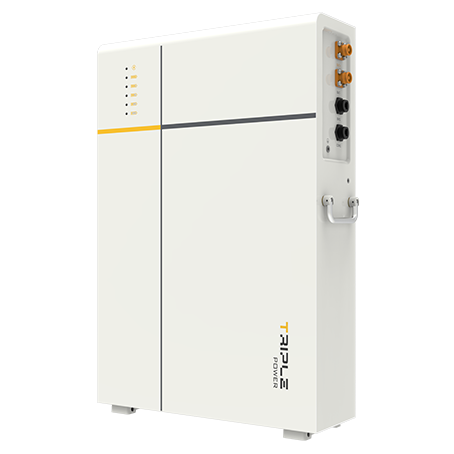

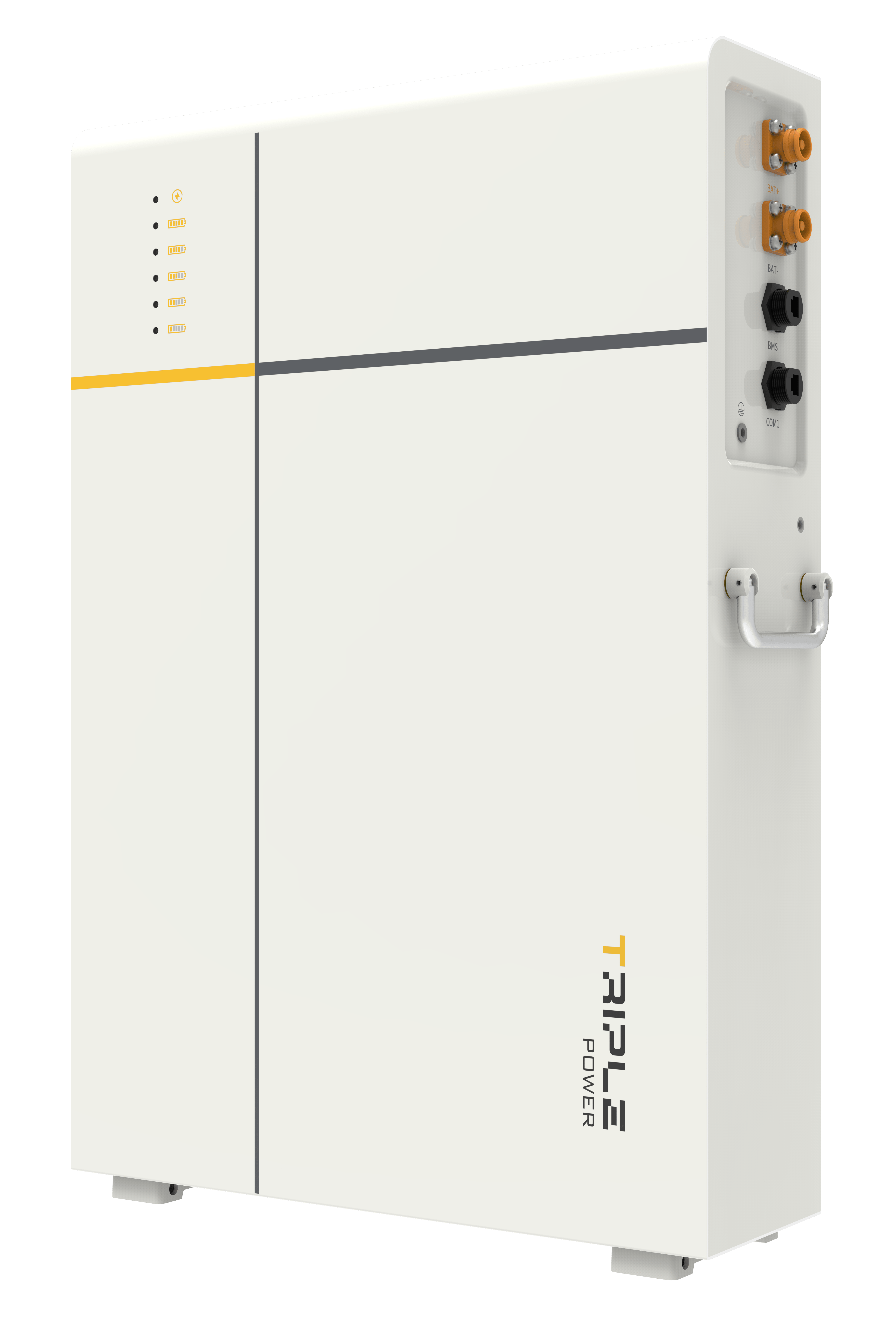

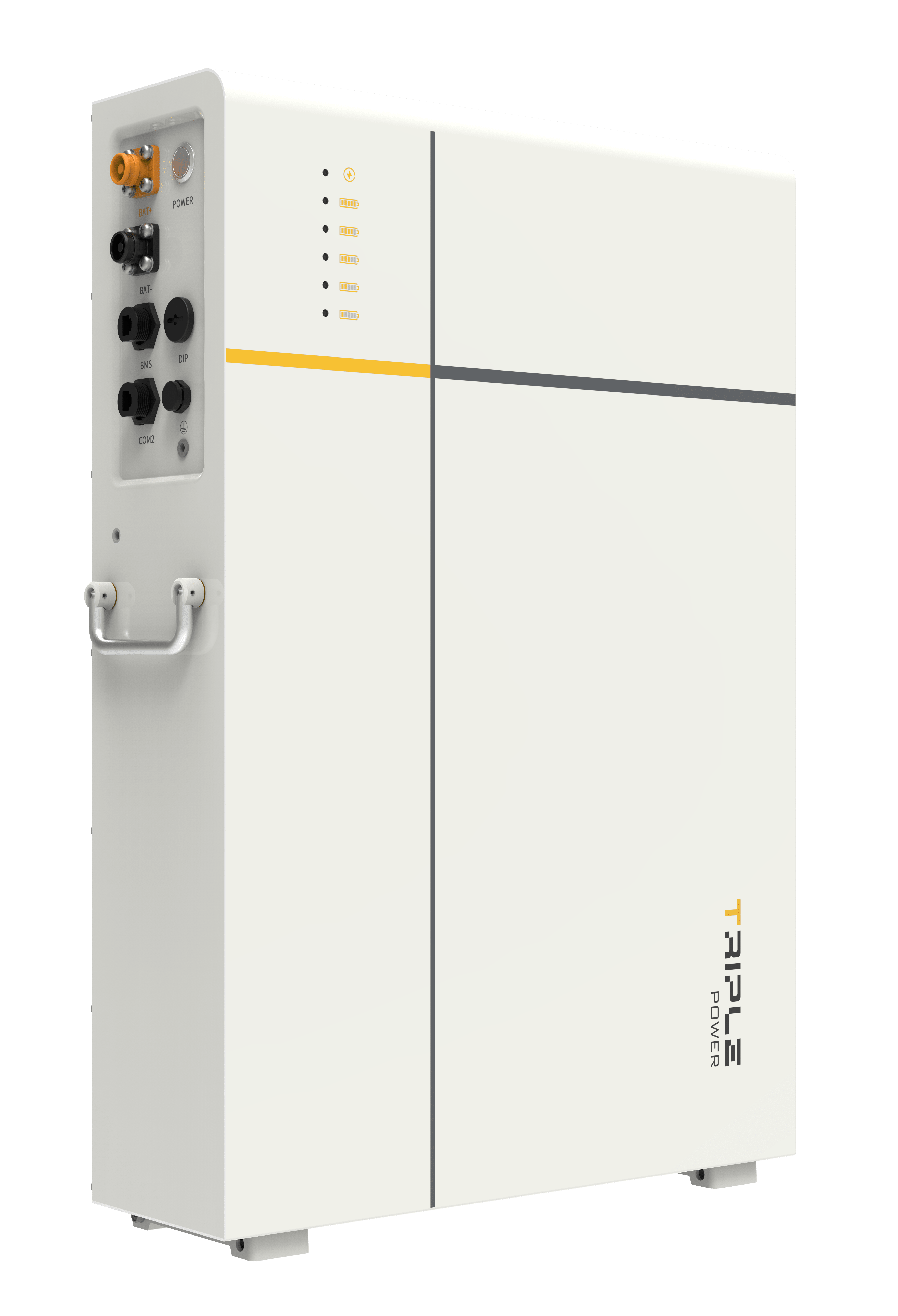

Akumulator
T-BAT-SYS-LV D53
-
5,3 kWh-85,1 kWh
SolaX T-BAT-SYS-LV D53 to system magazynowania energii nowej generacji wykorzystujący zaawansowaną technologię akumulatorów LFP. Dzięki szerokiemu zakresowi pojemności od 5,3 do 85,1 kWh i obsłudze jednocześnie do 16 jednostek oferuje elastyczne, skalowalne magazynowanie energii dostosowane do potrzeb współczesnych gospodarstw domowych.
-
Obejrzyj wideo
Zaleta produktu
T-BAT-SYS-LV D53 wyróżnia się potężną wydajnością, wspierając szczytowe prądy 200A i oferując długą żywotność cyklu ponad 6000 razy. Obudowa o klasie IP65 i wysokowydajne procesory zapewniają niezawodne działanie w różnych środowiskach. Wzbogacony o algorytmy zarządzania oparte na AI i możliwości zdalnego monitorowania, zapewnia inteligentną kontrolę energii przy minimalnej konserwacji.
Assured Reliability
LiFePO4 battery cell & high-performance processors
IP65 protection degree
Flexible Adaptability
Floor or wall mounting optional
Modular design, expandable to 16 units in parallel
High Performance
Peak discharge current: 200A for 10s
Cycle life > 6000 times
Smart Management
Remote fault diagnosis, upgrade and maintenance
Al-driven intelligent algorithms for high SOC and accuracy
Parametry produktu
-
T-BAT LD53-
SYSTEM DATA
Number of modules 1 Nominal capacity 5.3 kWh Max.output current 100 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD106
-
SYSTEM DATA
Number of modules 2 Nominal capacity 10.6 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD159
-
SYSTEM DATA
Number of modules 3 Nominal capacity 15.9 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD212
-
SYSTEM DATA
Number of modules 4 Nominal capacity 21.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD265
-
SYSTEM DATA
Number of modules 5 Nominal capacity 26.6 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD318
-
SYSTEM DATA
Number of modules 6 Nominal capacity 31.9 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD371
-
SYSTEM DATA
Number of modules 7 Nominal capacity 37.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD424
-
SYSTEM DATA
Number of modules 8 Nominal capacity 42.5 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD477
-
SYSTEM DATA
Number of modules 9 Nominal capacity 47.9 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD530
-
SYSTEM DATA
Number of modules 10 Nominal capacity 53.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD583
-
SYSTEM DATA
Number of modules 11 Nominal capacity 58.5 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD636
-
SYSTEM DATA
Number of modules 12 Nominal capacity 63.8 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD689
-
SYSTEM DATA
Number of modules 13 Nominal capacity 69.2 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD742
-
SYSTEM DATA
Number of modules 14 Nominal capacity 74.5 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD795
-
SYSTEM DATA
Number of modules 15 Nominal capacity 79.8 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
-
T-BAT LD848
-
SYSTEM DATA
Number of modules 16 Nominal capacity 85.1 kWh Max.output current 120 A Peak discharge current 200 A, 10s
-
GENERAL
Nominal voltage 51.2 V Dimension (L x W x H) 645 x 150 x 430 mm Weight 48.5 kg Battery type Lithium iron phosphate Ingress protection IP65
-
Data Download
-
Arkusz danych
-
Instrukcja obsługi
-
Krótki przewodnik instalacji
-
