Akumulatory domowe

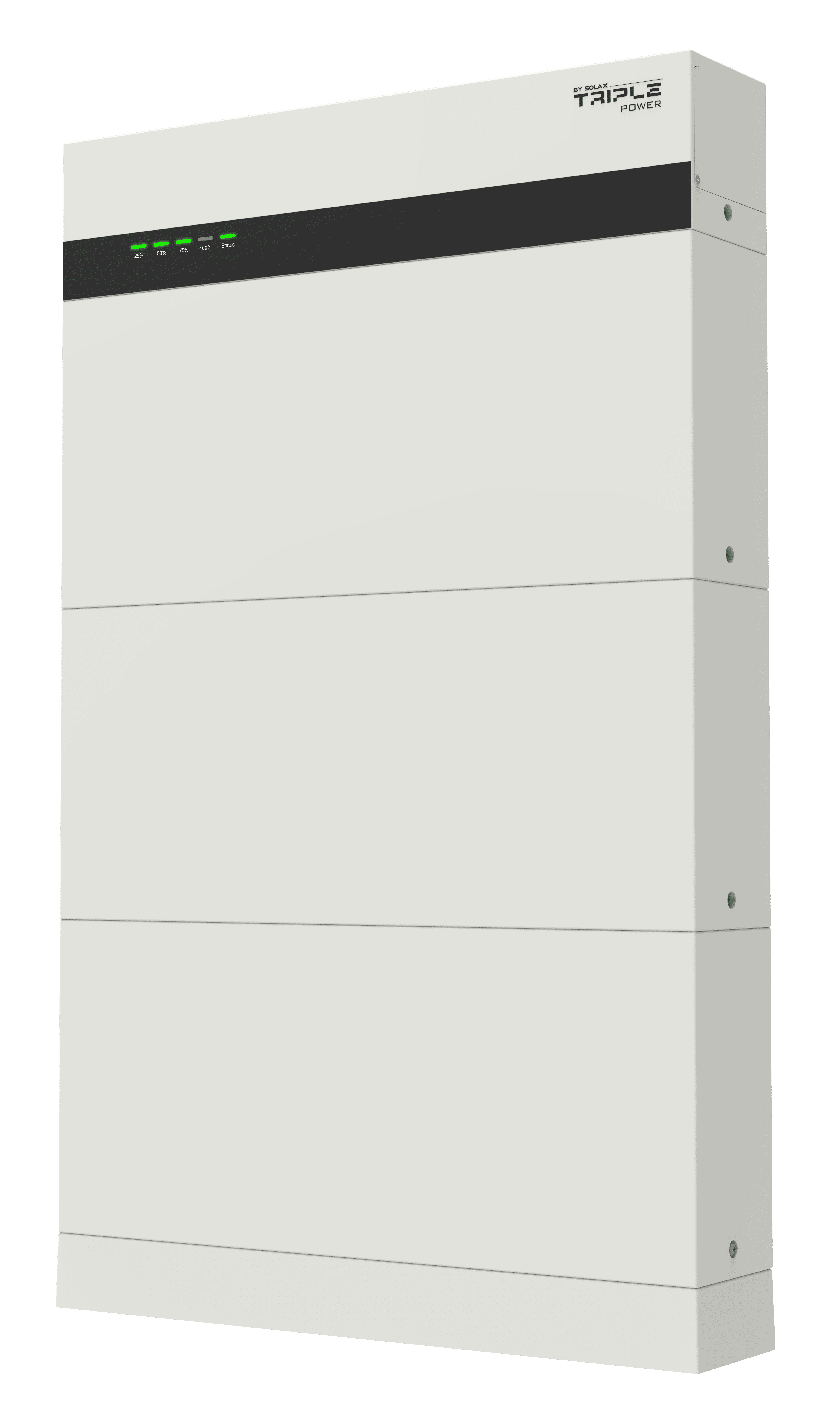

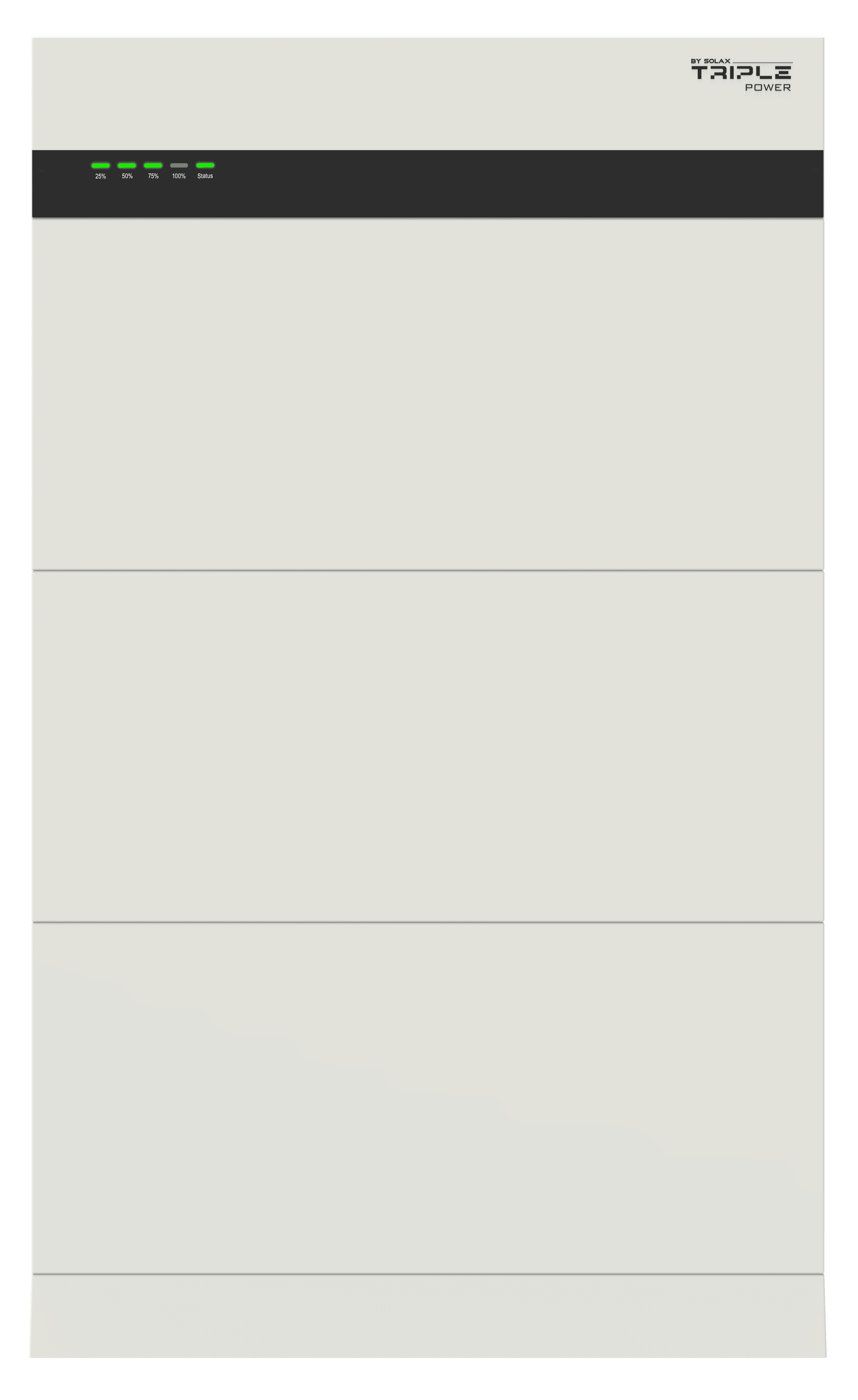

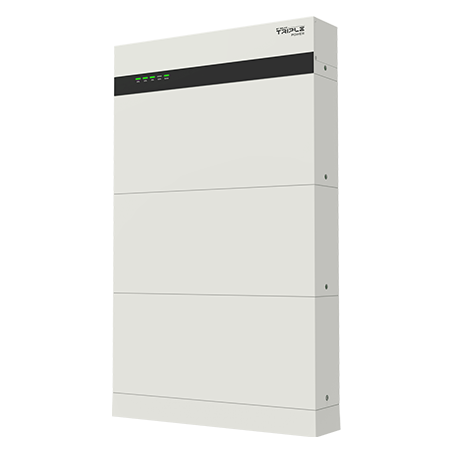

HS50E-D
-
5,1 kWh-92,1 kWh
Model HS50E-D charakteryzuje się modułową konstrukcją z elastyczną możliwością rozbudowy pojemności od 5,12 kWh do 92,16 kWh, co jest idealne do zmieniających się potrzeb energetycznych. Lekki i kompaktowy, obsługuje zarówno montaż ścienny, jak i podłogowy i jest kompatybilny z jednofazowymi i trójfazowymi falownikami SolaX, zapewniając szerokie możliwości adaptacji instalacji.
Zaleta produktu
Model HS50E-D obsługuje prąd ładowania/rozładowania 50A i działa w ekstremalnych zakresach temperatur od -30°C do 53°C. Dzięki zastosowaniu IP66, bezkobaltowego akumulatora LFP i zaawansowanych algorytmów SOC/SOH opartych na AI, zapewnia długotrwałe magazynowanie energii dzięki inteligentnemu zarządzaniu i modernizacji OTA.
Easy Installation & Compatibility
Lightweight, compact, and easy to set up
Available in wall-mounted or floor-mounted options
Fit a wide range of SolaX single and three-phase inverters
High Performance
Max. 50A charge/discharge current
-30°C to 53°C operational range with advanced heating technology
Higher SOC/SOH accuracy through AI battery model algorithms
Automotive-grade cell sampling chips for superior stability and safety
Safety & Reliability
Certified IP66 for outstanding protection
Cobalt-free LFP battery: safe, long-lasting, efficient, high energy density
A robust cycle life of over 6,000 times, ensuring longevity and reliability
Flexibility
Modular design, flexible expansion
Start with 5.12kWh, expand up to 92.16kWh
Parametry produktu
-
T-BAT HS 5-
SYSTEM SPECIFICATION
Number of modules 1 Module Norminal capacity [kWh] 5.1 Nominal voltage [V] 102.4 Standard power [kW] 3
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*558 -
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 10
-
SYSTEM SPECIFICATION
Number of modules 2 Module Norminal capacity [kWh] 10.2 Nominal voltage [V] 204.8 Standard power [kW] 6.1
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*876 -
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 15
-
SYSTEM SPECIFICATION
Number of modules 3 Module Norminal capacity [kWh] 15.3 Nominal voltage [V] 307.2 Standard power [kW] 9.2
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194 -
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 20
-
SYSTEM SPECIFICATION
Number of modules 4 Modules Norminal capacity [kWh] 20.4 Nominal voltage [V] 409.6 Standard power [kW] 12.2
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194
730*150*491
-
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 25
-
SYSTEM SPECIFICATION
Number of modules 5 Modules Norminal capacity [kWh] 25.6 Nominal voltage [V] 512 Standard power [kW] 15.3
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194
730*150*809
-
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 30
-
SYSTEM SPECIFICATION
Number of modules 6 Modules Norminal capacity [kWh] 30.7 Nominal voltage [V] 614.4 Standard power [kW] 18.4
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194
730*150*1127
-
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
Data Download
-
Arkusz danych
-
Krótki przewodnik instalacji
-
Nazwa plikuJęzykFormatRozmiarOstatnia aktualizacjapobierać
